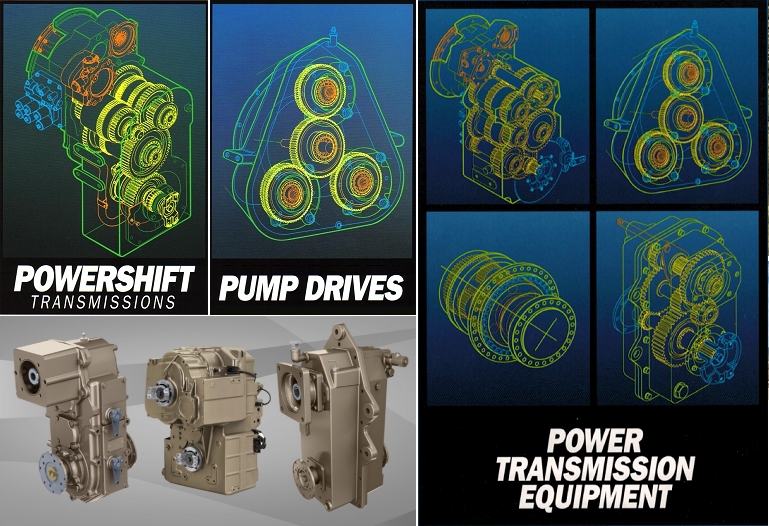

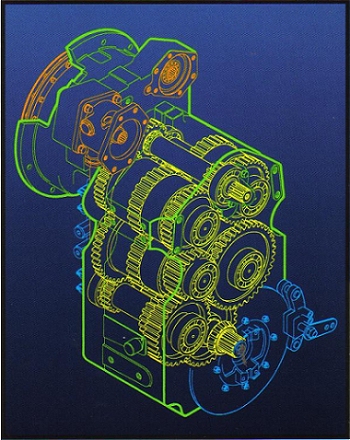

POWERSHIFT TRANSMISSIONS

FUNK powershift transmissions with full power shifting through up to twelve forward speeds, allow you to design equipment that is more productive, offers precise load matching and gives better fuel and time efficiency.

A wide selection of powershift transmissions is available from FUNK. Power ratings range from 37 kW (50 SAE hp) up to 224 kW (300 SAE hp) and speeds range from three speeds up to twelve speeds.

FUNK is a leader in the development and application of electronic controls, a critical technology in the successful application of powershift transmissions.

Numerous options are available to make FUNK transmissions fit your specific needs.

TYPICAL APPLICATIONS OF POWERSHIFT TRANSMISSIONS:

Agriculture vehicles
Aircraft tow tractors
Cranes
Excavators
Forestry vehicles
Industrial lift trucks
Mining vehicles
Motor graders
Railway vehicles
Road Maintenance
Wheel Loaders
Specialized equipment applications

FUNK powershift transmissions are available through seven groups.

DF 250 Series
Up to 224 kW (up to 300 hp)
4, 8, and 12 speeds forward – 4 speeds reverse
Engine, midship or remote mounted
Torque converter or direct driven

2000 Series
Up to 168 kW (up to 225 hp)
3, 4, or 6 speeds forward – 3 speeds reverse
Short and long drop
Engine, midship or remote mounted

4000 Series
37-75 kW (50-100 hp)
3 speeds-forward and reverse
Short, mid, and long drop
Engine and midship mounted

DF 150 Series
Up to 142 kW (up to 190 hp)
4 and 8 speeds forward – 4 speeds reverse
Engine, midship or remote mounted
Torque converter or direct driven

1700 Series
Up to 93 kW (up to 125 hp)
3 and 4 speeds forward and reverse
Long drop
Engine, midship or remote mounted

Converter PTO Drives
Used with remote mounted transmissions
Two vehicle pump drives

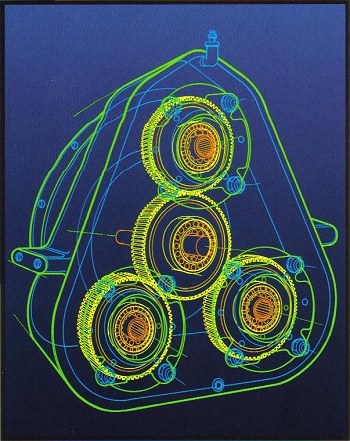

HYDRAULIC PUMP DRIVES

FUNK has earned position of America’s largest producer of pump drives by offering the largest selection of quite, dependable pump drives, economically and on time.

FUNK pump drives are designed on a modular concept. This allows you the flexibility of applying FUNK drives to numerous design needs.

There are found model series available with input capabilities up to 708 kW (950 SAE hp).

FUNK drives offer a variety of gear ratios and hydraulic pump adapters to match your hydraulic system. They are equipped to operate from a remote mount, direct engine mount or as clutch driven units. Adapters are available for a variety of engine housings and flywheel sizes.

The modular design also allows for easy adaptation to numerous pump selections.

Our account managers will assist you in selecting the pump drive that meets the needs of your design.

FUNK Pump Drives are offered through four product groups.

61000 Series
This series contains eight models of small, high performance, double and triple pump drives, 481 Nm (355 lb-ft) (max.) input torque. Available SAE pump sizes A, B, and C.

28000 Series
Single, double and triple hydraulic pump drives. Quiet, efficient spur-type gears with a wide choice of ratios. Up to 881 Nm (650 lb.-ft*) (max.) input torque. Available SAE pump sizes A,B,C and D.

59000 Series
This series is capable of driving 2, 3, or 4 hydraulic pumps for a single unit. Up to 1694 Nm (1,250 lb.-ft*) (max.) input torque. Available SAE pump sizes A,B,C and D.

56000 Series
For bigger horsepower applications. Provides 2, 3, 4, or 5 pump drives with up to 2710 Nm (2,000 lb.-ft*) input torque. Available SAE pump sizes D, E and F.

*Ratings may vary depending upon application and service. Application and installation are subject to review by FUNK Manufacturing.
